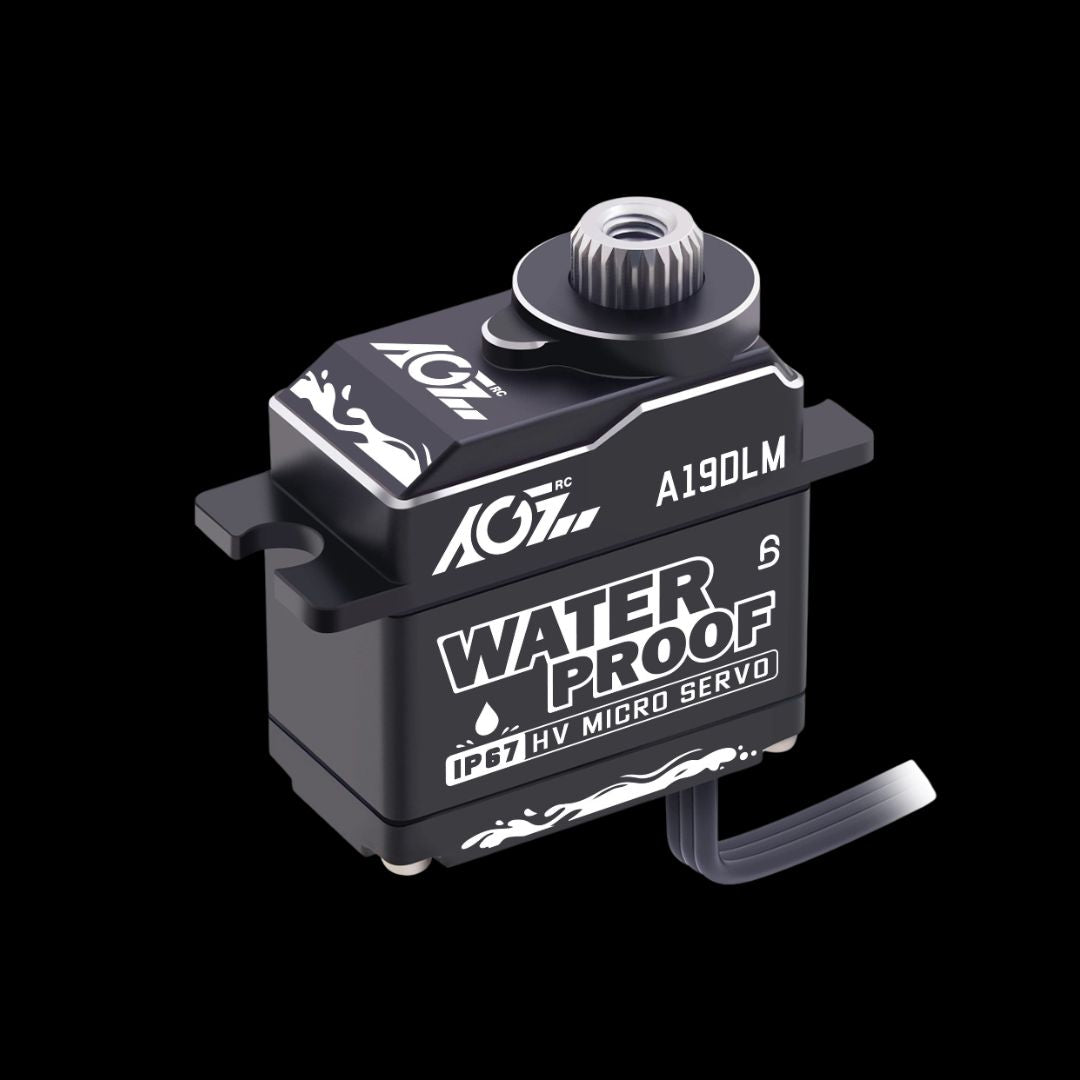

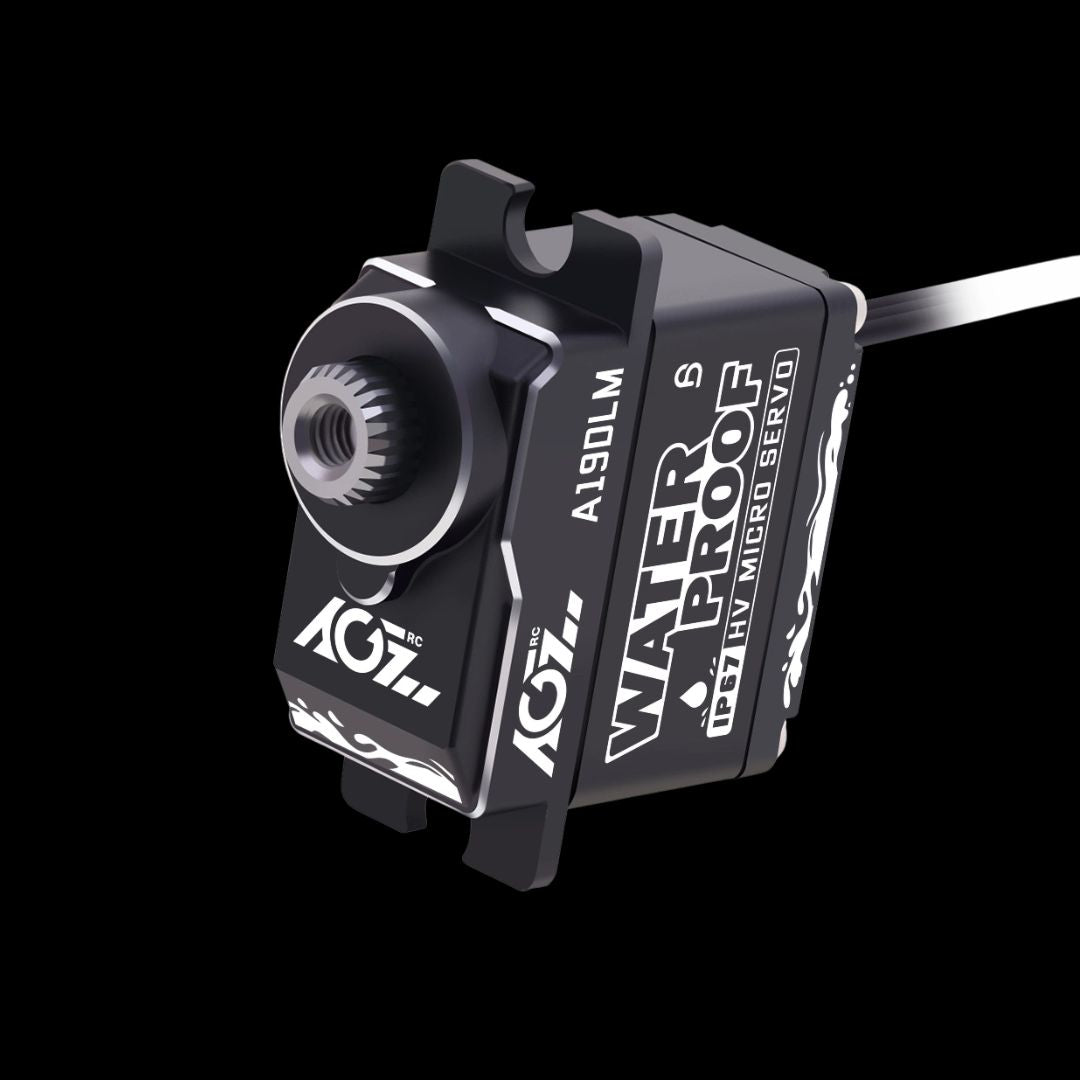

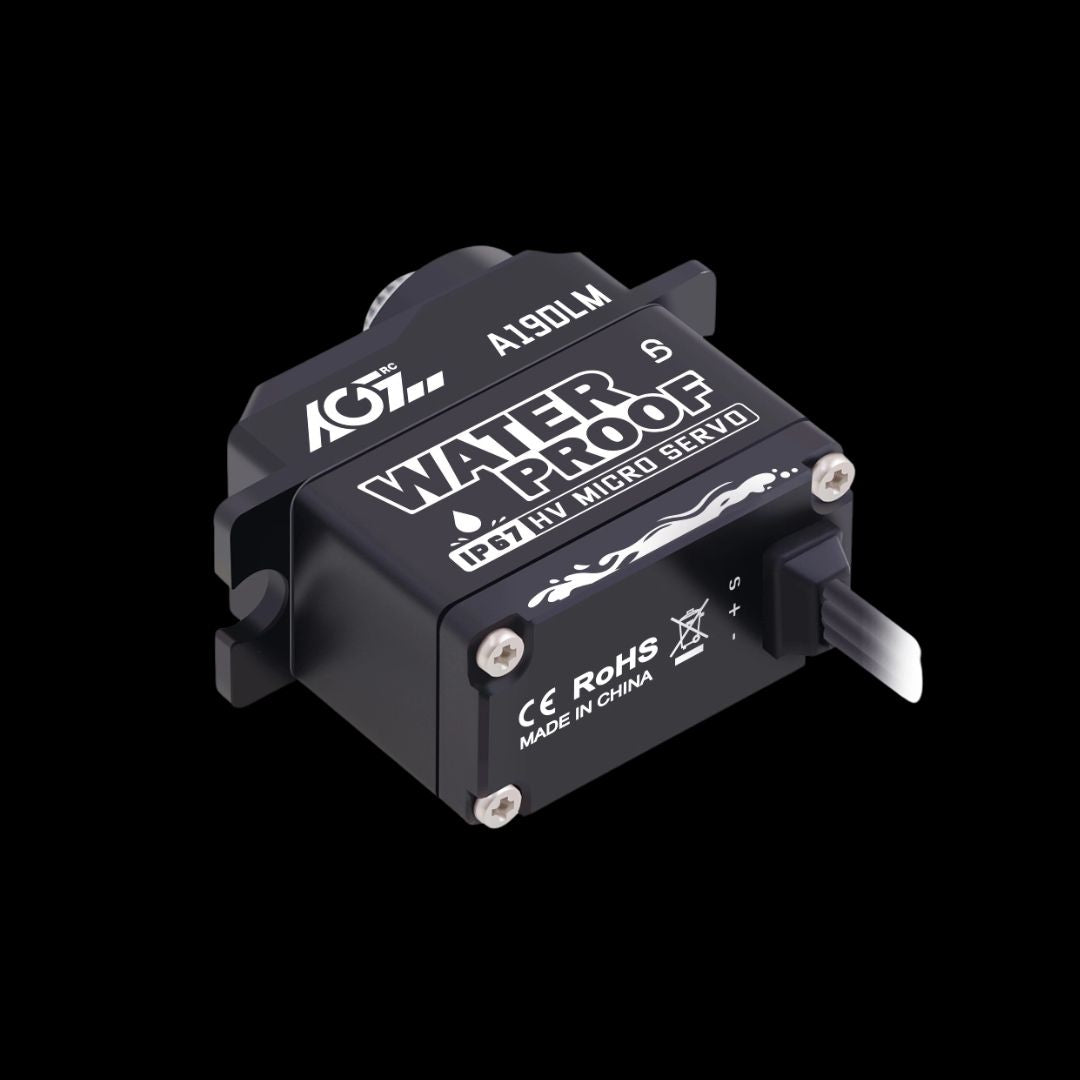

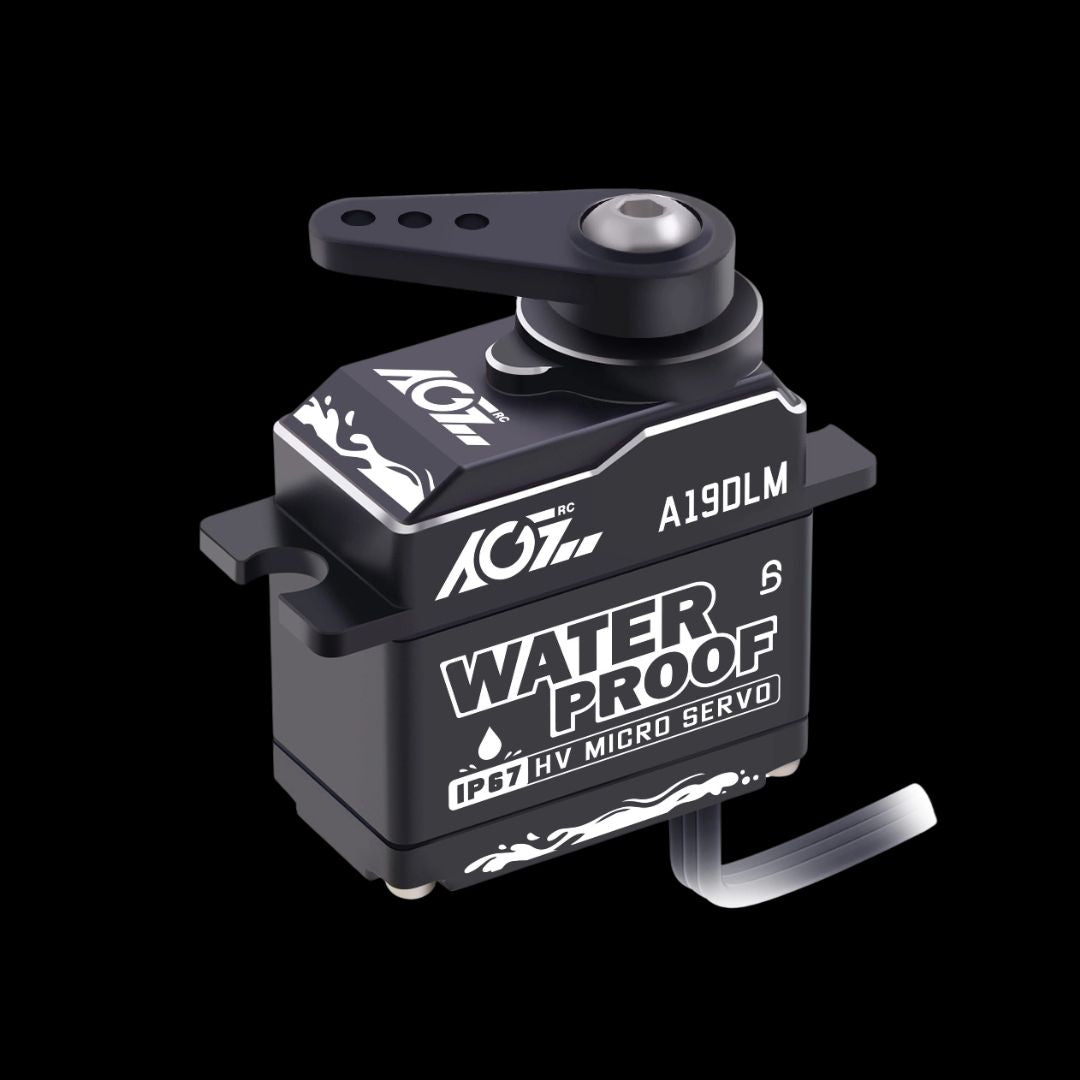

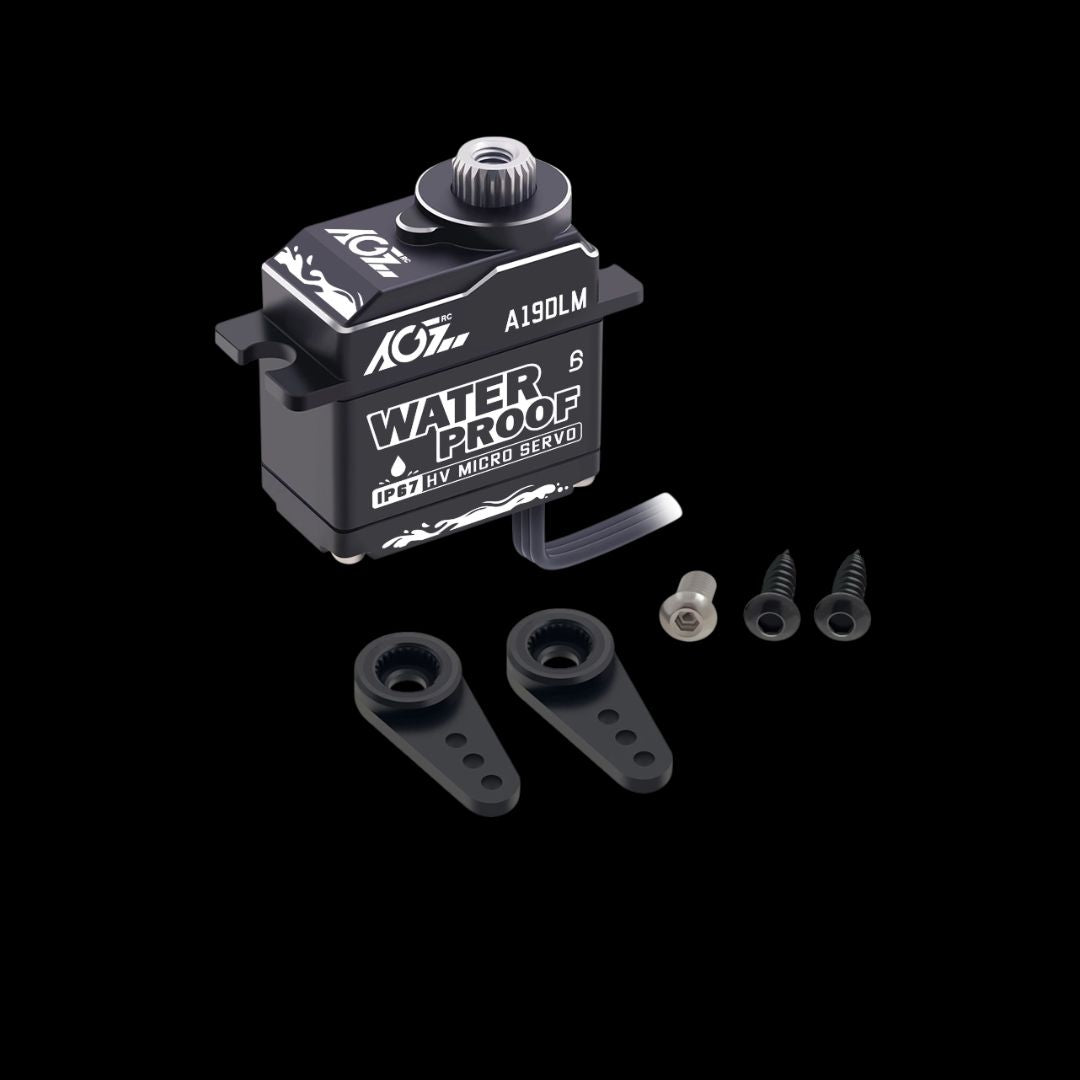

AGFRC High Torque Aluminum Case Micro Digital Servo (A19DLM)

A19DLM is a new full aluminium micro servo. With robust metal structure and gear set, this servo with high torque and speed in its size. Programmable feature also allow for different users to find the suitable data for their applications.

Great choice to upgrade for your Losi Promoto (brake), Traxxas all 1/10 models, 1/10 RC Crawler TRX-4 TRX-6, Axial SCX10 III, Capra, or 1/18 TRX4M, Aixal 1/10 SCX10 III Jeep JL Warngler 4WD, Absima 1:10 EP Crawler, Absima Sherpa CR3.4 1/10 Crawler, Absima 1:8 EP Crawler, Vanquish phoenix, Absima sherpa,

Feature

Aluminum Alloy Case

Wide Voltage Application

Magnetic Waterproof Design

Parameter Programmable

Specification

Model Name: A19DLM

Operating Voltage: 4.8-8.4V

Operating speed: 0.110sec/60° @ 6.0V

Operating speed: 0.095sec/60° @ 7.4V

Stall Torque: 3.0 kg-cm (41 oz-in) @ 6.0V

Stall Torque: 3.5 kg-cm (48 oz-in) @ 7.4V

Gear: Titanium

Motor: DC

Size: 22.9*12.8*22mm

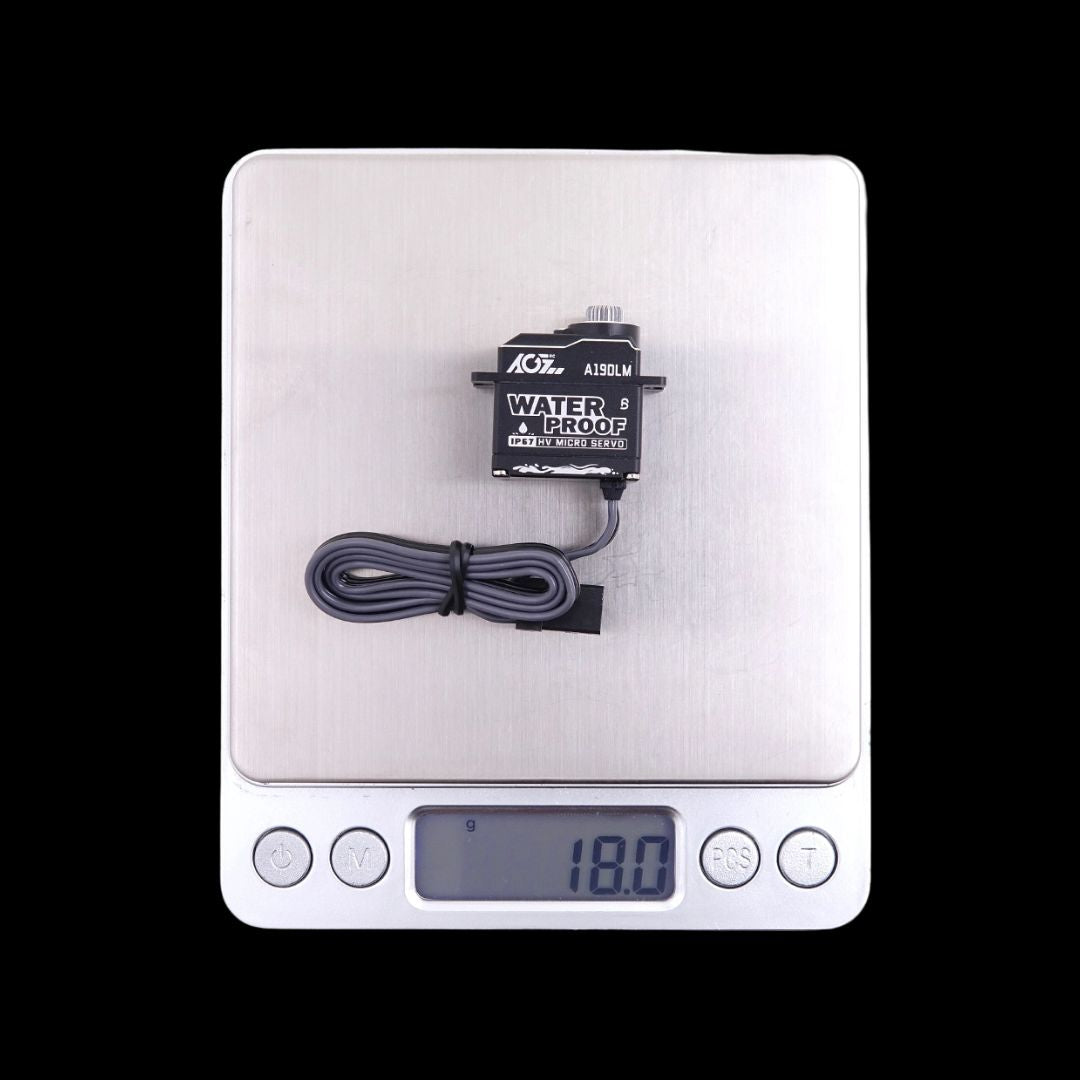

Weight: 19g

Connector Wire: TYU 350mm / 26AWG
