Innovative RC (IRC) BAJA V3 Big Bore Shocks - Rear (silver)

Innovative-RC Rear Big Bore Shocks V3 for the HPI Baja

After 18+ Months of testing we are pleased to release the Innovative-RC true Big Bore shocks for the HPI Baja 5B & 5T, Innovative-RC 'Big Bore' shocks are purposely built from the ground up using no HPI parts what so ever. Giving a true aftermarket shock with many features over stock shocks...with full spares of every part available.

Starting with a large oversized shock body of 20mm giving a huge volume of oil followed by a 8mm high tensile steel shaft that is precision ground round for a perfect seal in all conditions as opposed to 4mm (RTR) & 6mm (VVC) shafts. no large shock shaft would be complete with full Umbrella/ Oil seals to give the best possible oil seal, making leaks a thing of the past. we have also build other seals with in the shock bottom cap to stop and limit any dirt & sand entering into the shock seals and shock body which is main cause of leaks. so no expensive seal upgrades are needed.

Each shock Cap Contains a bleeder hole for easy quick assembly and bleeding of the shocks once filled with oil removing all air and excess oil quickly and efficiently. While the shock body has a fully adjustable unlimited potion adjust that screws up and down the length of the shock body giving that i deal shock spring set-up for any track or condition that might come up.

Each shock’s spring retainer is full housed on the shock shaft & rose joint meaning the retainer can no longer come loose meaning no more lost or loose spring retainers.

V3 Shock bodies also now have a ultra fine burnished mirror-like finish giving a tough, work-hardened surface finish as fine as 2 micro-inches (0.05 micrometers) translating to giving a silky smooth operation over the entire shock travel distance

Over View:

• Massive 8mm rear shock shaft - ground round for a perfect sea - Surface finish: Better than 0.6 microns (25 micro inch)
• V3 Shock bodies also now have a ultra fine burnished mirror-like finish giving a tough, work-hardened surface finish
• V3 includes spanner Flats on shock body for easy assembly now
• V3 also has spanner flats on shock shafts
• V3 also includes 3mm springs as standard

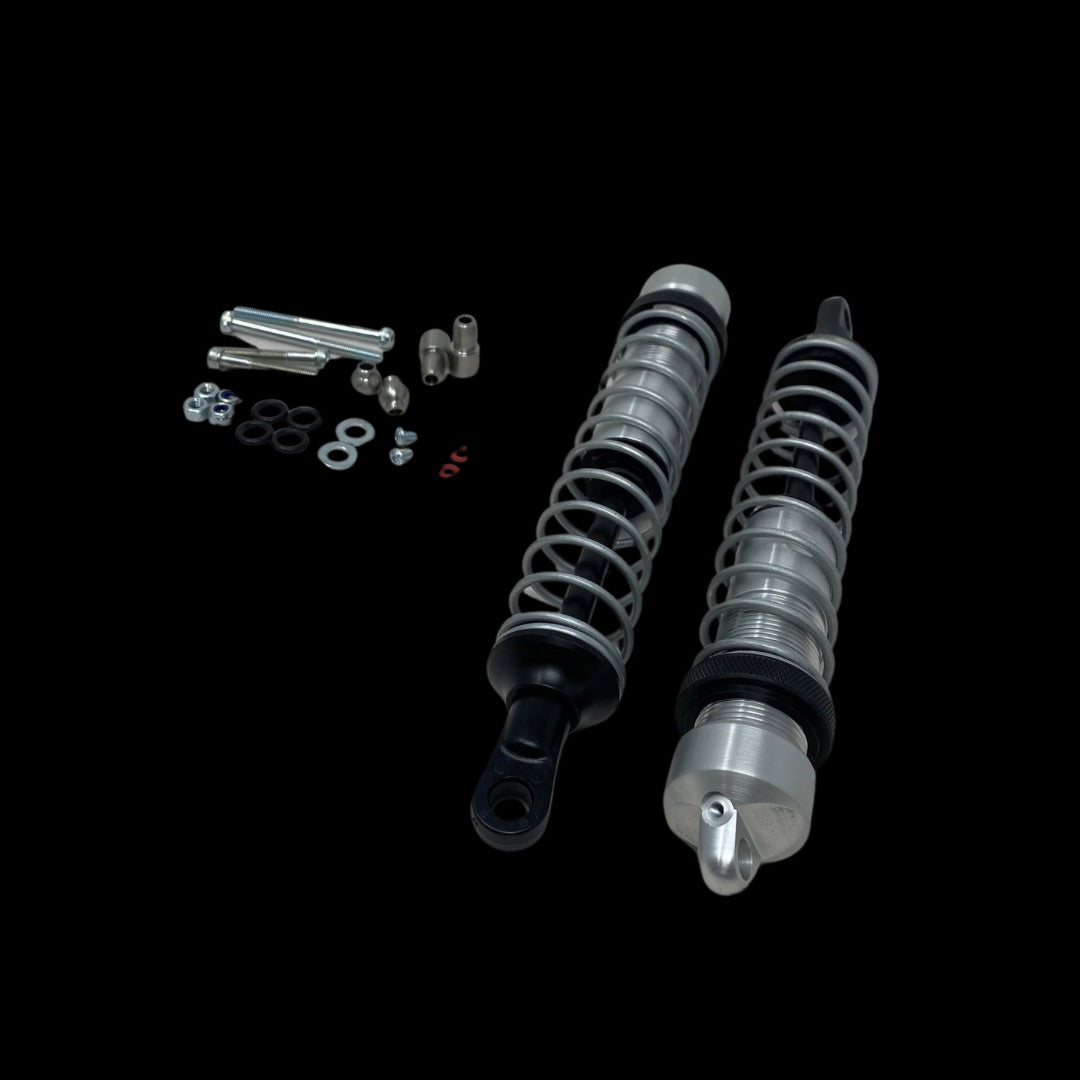

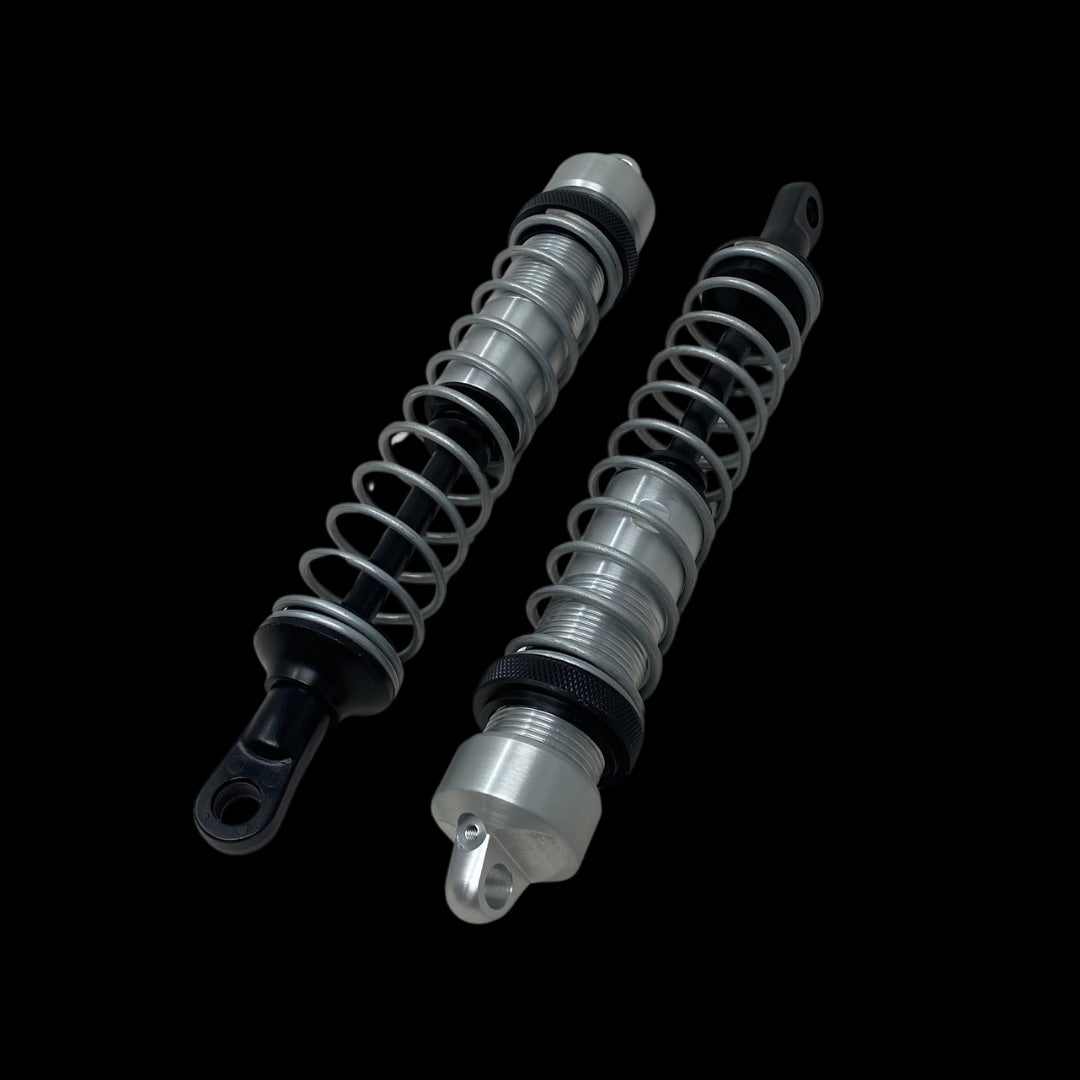

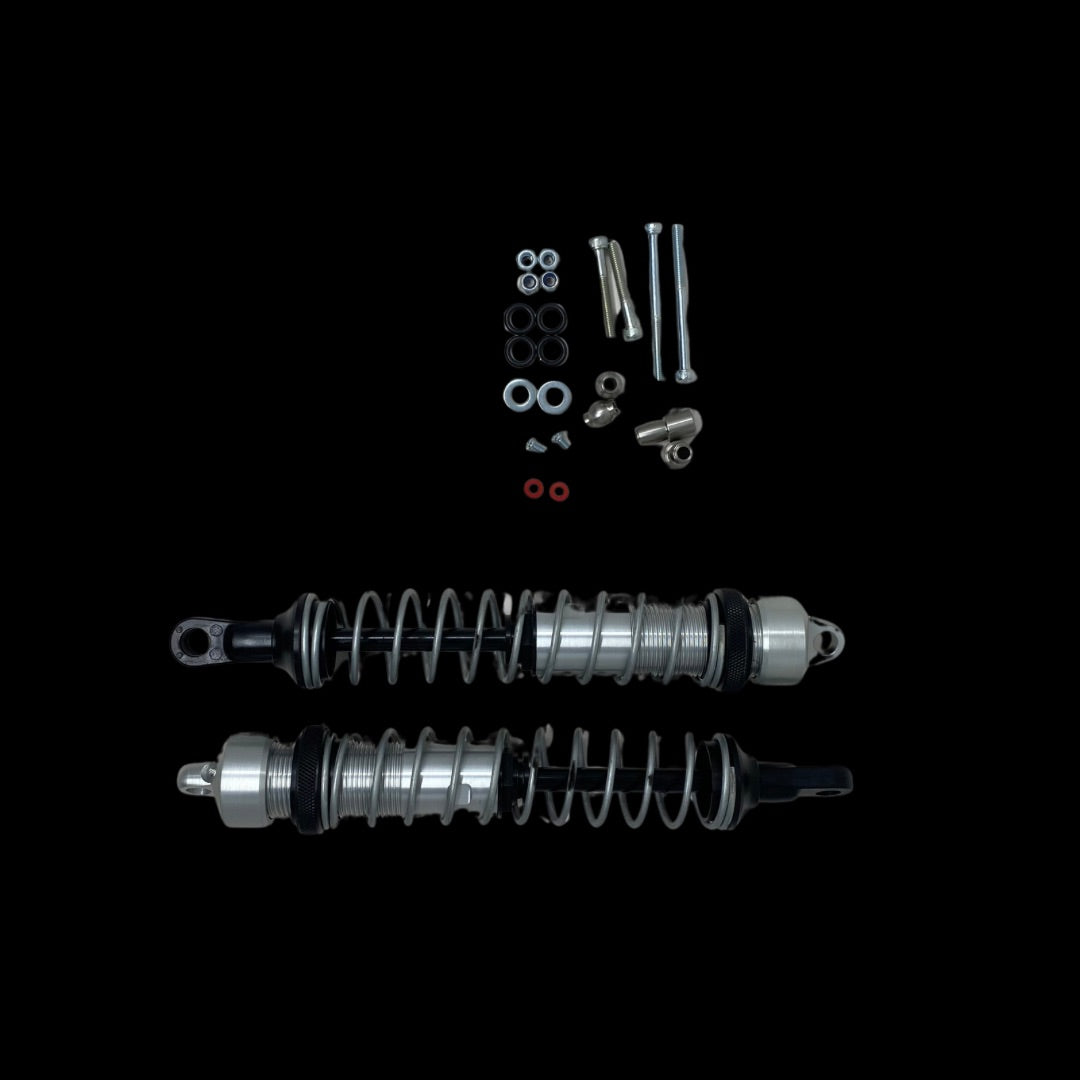

• 2x Rear Big Bore shocks - pre assembled.
• 2x Bottom rose joint balls for front mounting - pre installed.
• 2x top rear shock mount pivots for Stock mounting (For other mounts please see option extra or contact us).

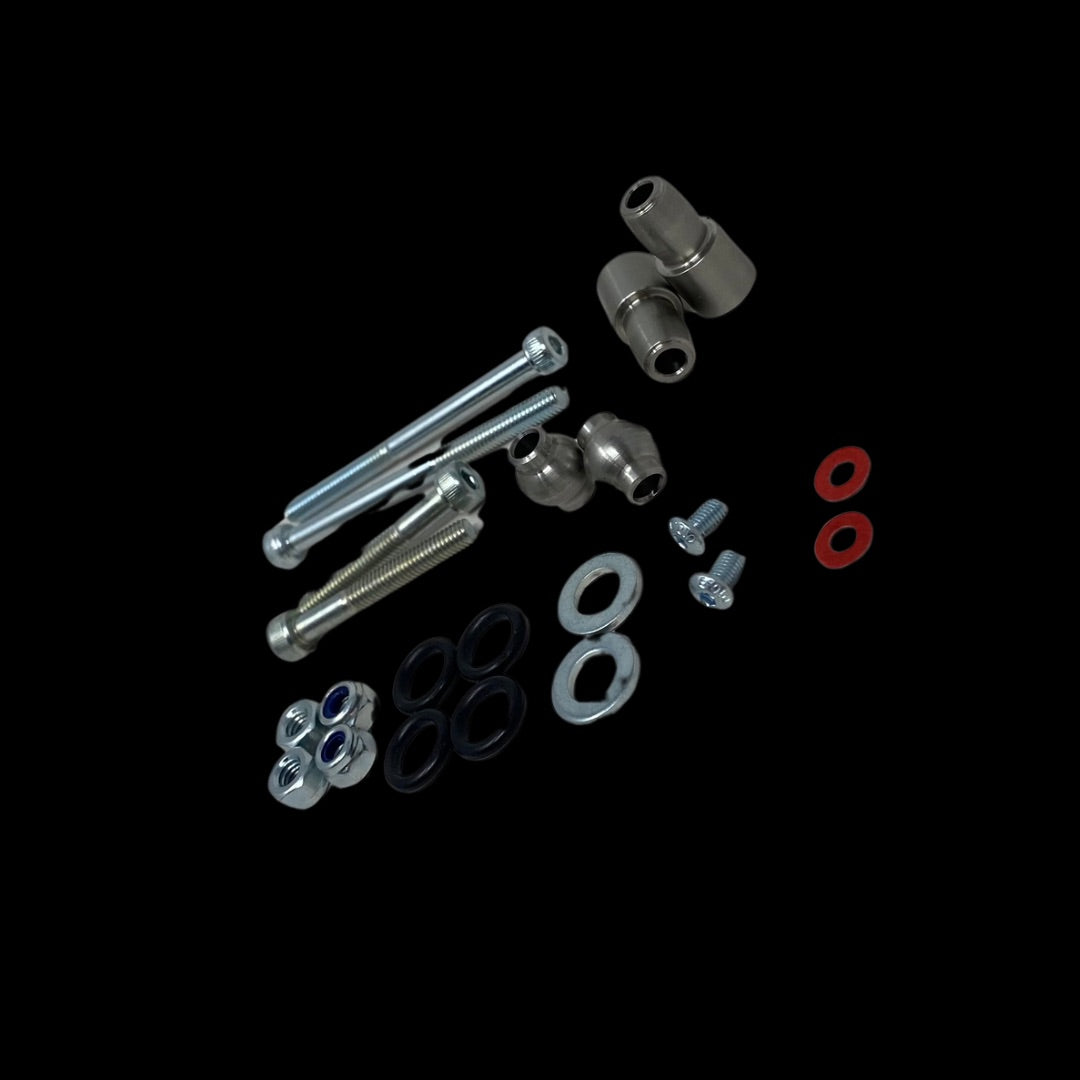

• screws & hardware for mounting front shocks.
• Pre install Umbrella/Oil seals for leak free and long life shock operation.
• Extra seal protection before oil/umbrella seal to stop sand and find dirt entering seals.
• Same length as stock HPI Baja shocks, so direct fit.

Needed & recommended Parts:

• Shock Oil - 57ml (2oz) ~ fills two and half shocks.
• Baja 5B 5T SS Rear Shock Brace - part# 87551
• recommended - front shock braces for extra support - Innovative-RC or other. (TR fully comparable with TR top pivot stand-offs)

Oil recommended:
We find we do get asked this question quite often, please use the bellow as a guide line only, as we can not know your driving style and likes but we find it helps most people get started on there way to a set-up they like, also custom pistons can help in shock rebound rates (see shock parts for blank pistons and other piston types)

Silicone shock oil, recommended, 20-35wt front, 25-45wt rear. (~200CPS - 400CPS front, 280CPS - 650 CPS rear)
