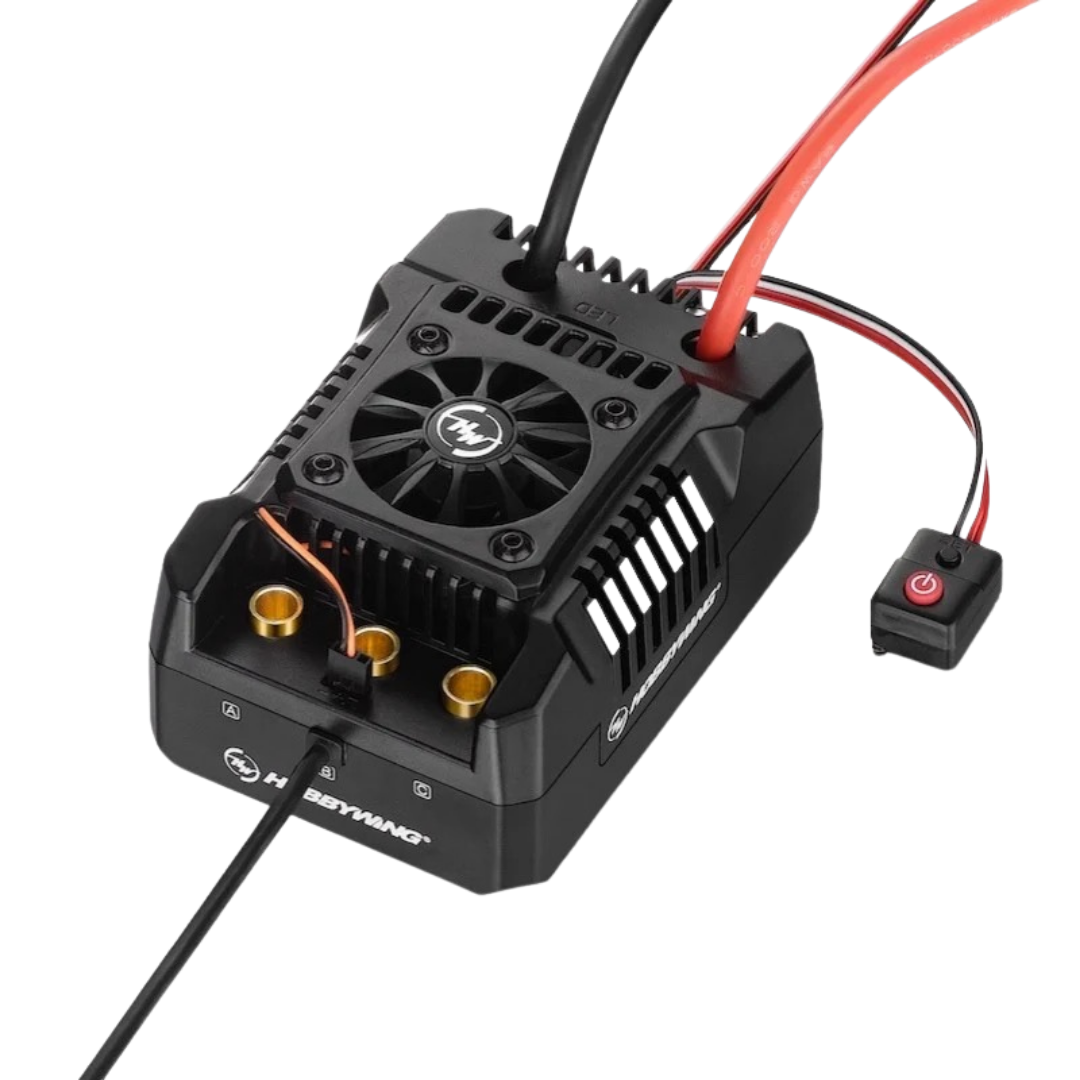

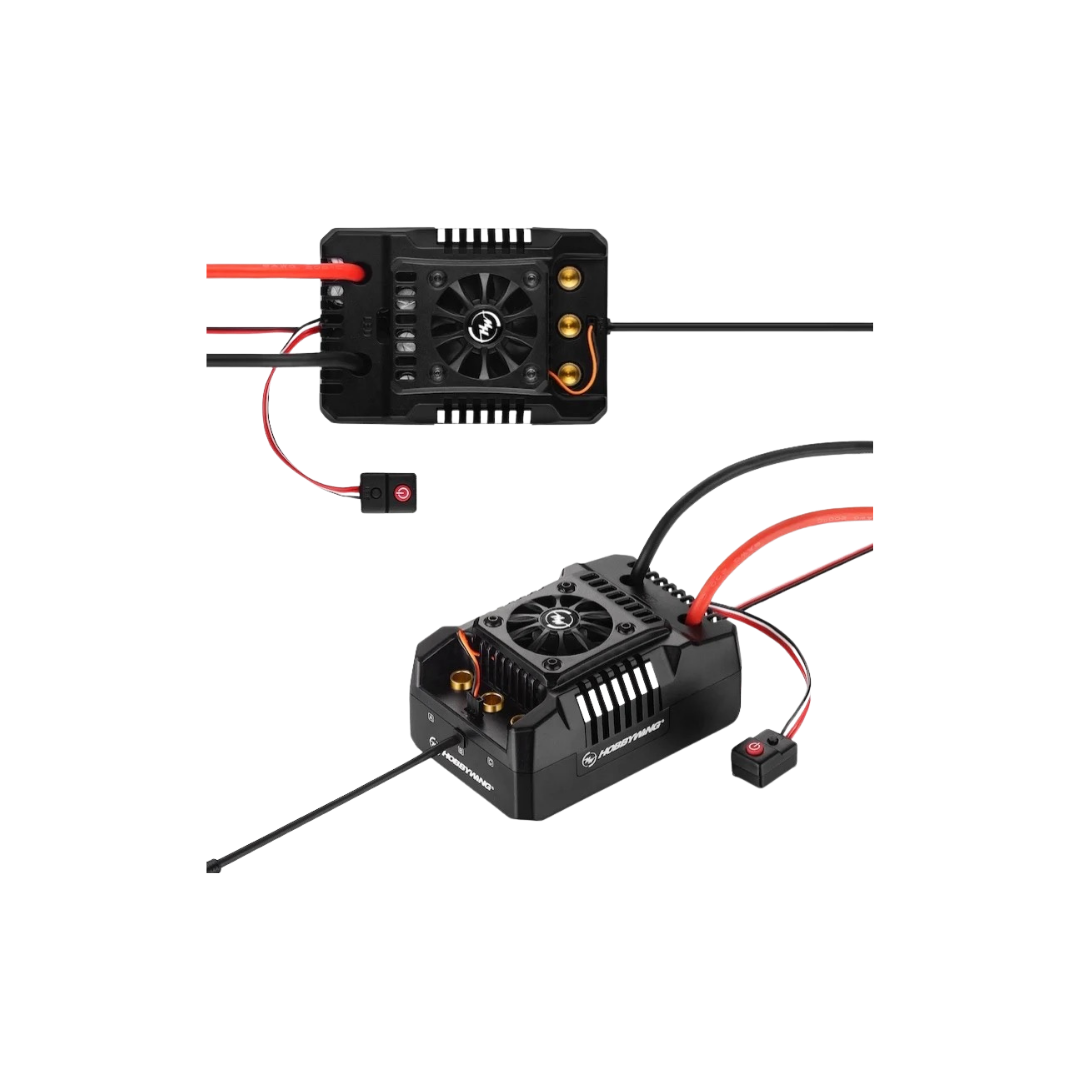

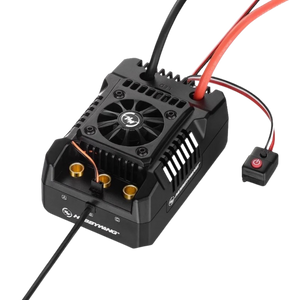

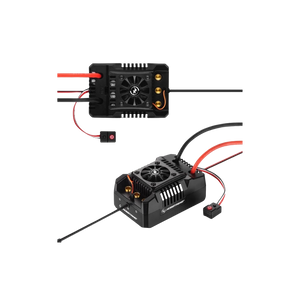

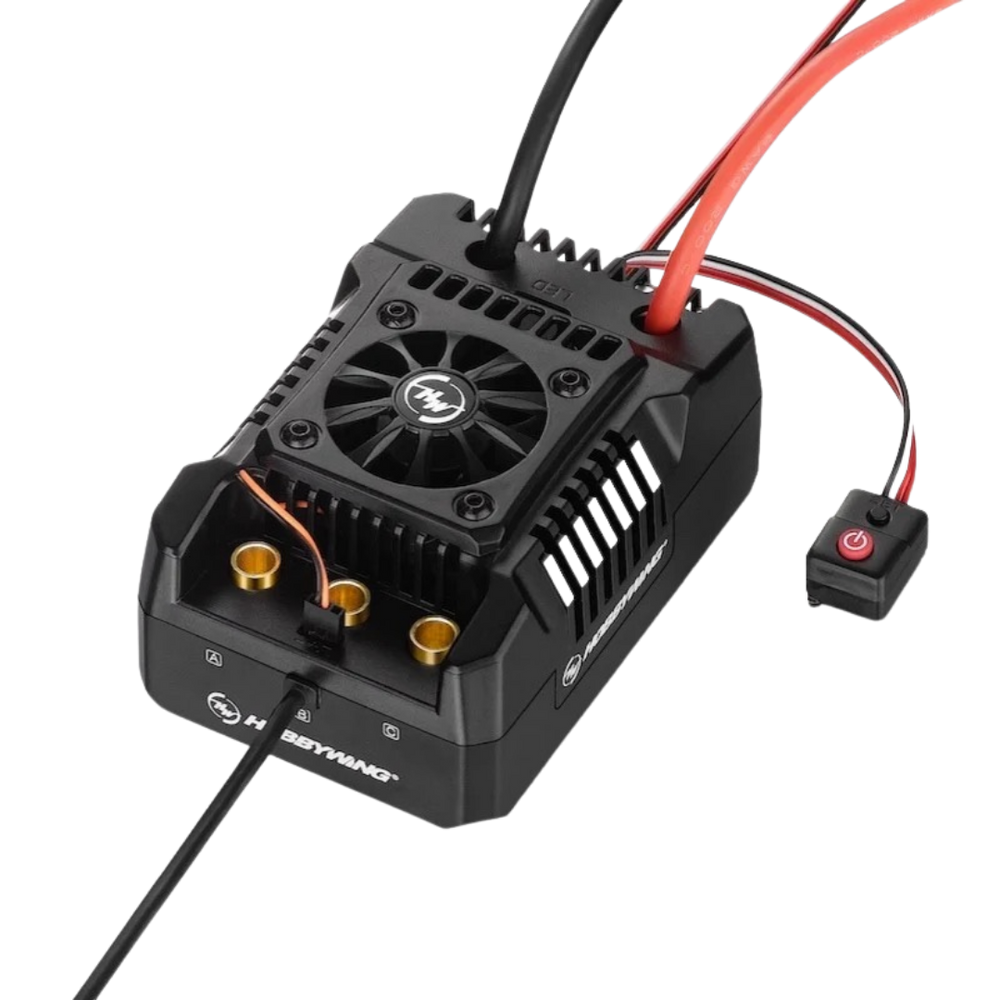

EZRUN MAX4 ESC (HV 6-12S) [HWI30104002]

The EZRUN Max4 ESC from Hobbywing is the ultimate in managing voltage and amp draw! This speed control is capable of running sensored when paired with the 70125 560kv motors and cab handle 12S LiPo power! These are the factory installed motor for the Kraken RC VEKTA and KV5TT models. These are also a common choice for Losi 5IVE converted brushless cars, MCD converted brushless cars and the new Losi 5IVE-T 3.0! For an extra cost we can supply the Max4 ESC fitted with industry-leading QS8 connectors. Contact us for more information.

Bottomline

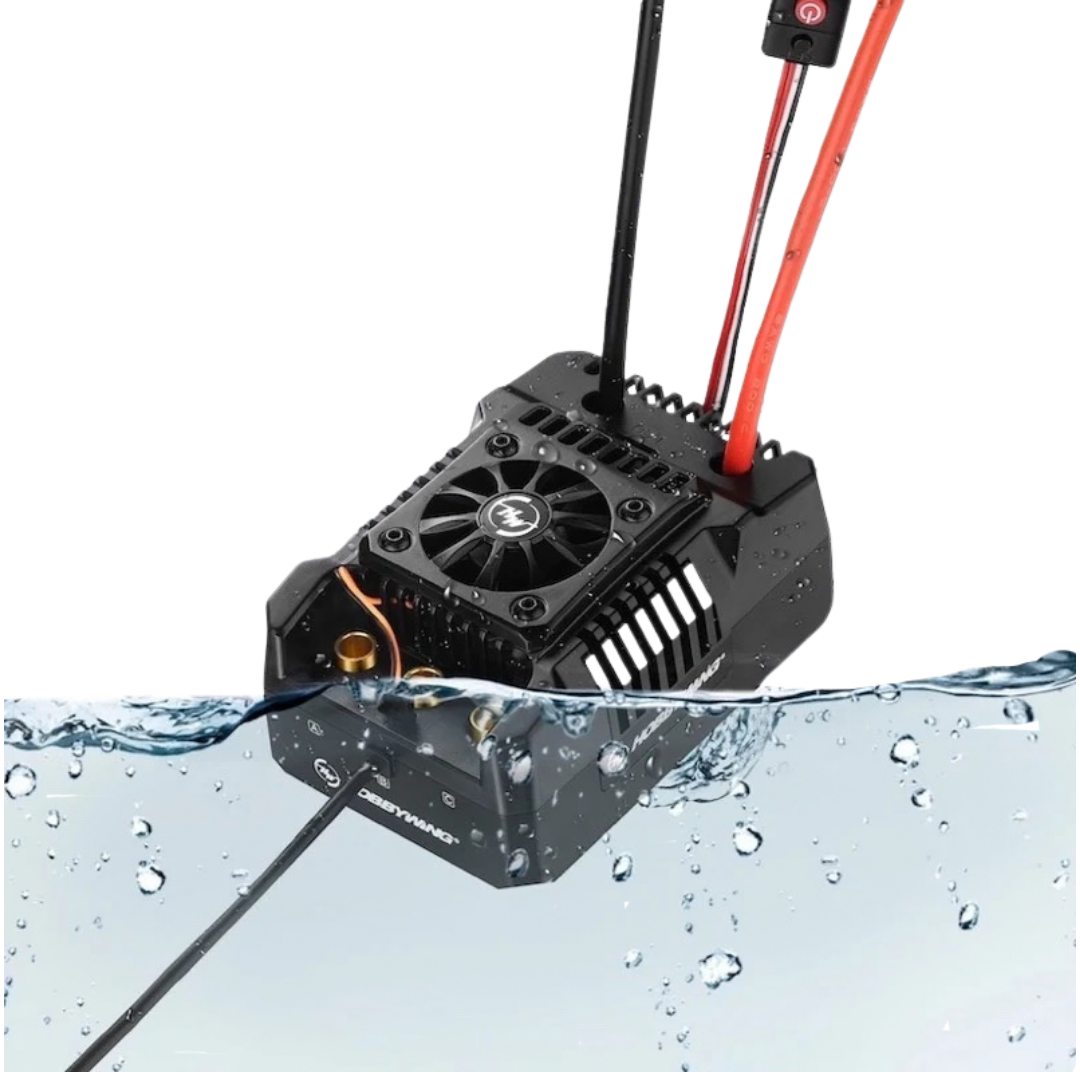

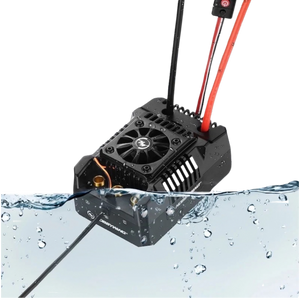

The ESC uses a special process, coupled with an innovative waterproof design, to increase waterproofing and dust-proofing performance in different climates. It is easy to deal with harsh conditions containing sediment, ice, snow, and water accumulation.
Built-in ultra-powerful switch mode BEC with a continuous current of 10A, an instant 25A, and support for 6V/7.4V/8.4V switching, supporting a wide range of powerful and high-voltage servos.
Equipped with the most advanced and safe electronic switches. The traditional mechanical switch protects and prevents dust, humid and other harsh environments, contact rust, and violent impact (such as flying slope landing) caused by the automatic closure of mechanical switches and other issues.
Built-in fire-proof circuitry to protect the battery plug, while effectively avoiding damage to the case from electrical sparks (fingers).
Multiple protection functions: battery low voltage protection, ESC and motor overheat protection, signal loss protection, and current protection.
Support LED program card, LCD program box, OTA programmer (Note: optional) to set the parameters of the ESC.
Real-time data recording function to view various running data on the HW LINK app using the OTA Bluetooth module.

MAX 4 (HV)
Scale Vehicles	1/4 - 1/5th
Cont./Peak Current	300A/2000A
Motor Mode	Sensored and sensorless brushless motor
Input	6-12S Lipo
Motor Limit	With 12S Lipo: KV≤600 70125 size motor
BEC Output	6V / 7.4V / 8.4V adjustable, continuous current 10A (Switch-mode)
Programming Port	Share with Fan interface
Sensored	Motor Sensor Convertor Cable Not Included
Switch Mode	Electronic Switch
Capacitor protection	Yes
Waterproof	Yes
Size (L.W.H) mm	125 x 85 x 61.7mm
Weight (g)	775.4g

What's in the BOX?

• 1x 8AWG Red Wire
• 1x Programing Cable Adapter
• 1x ESC manual
• 1x HOBBYWING Decal Sheet
• 2x Heat-shrinks
• 2x Zip-ties
