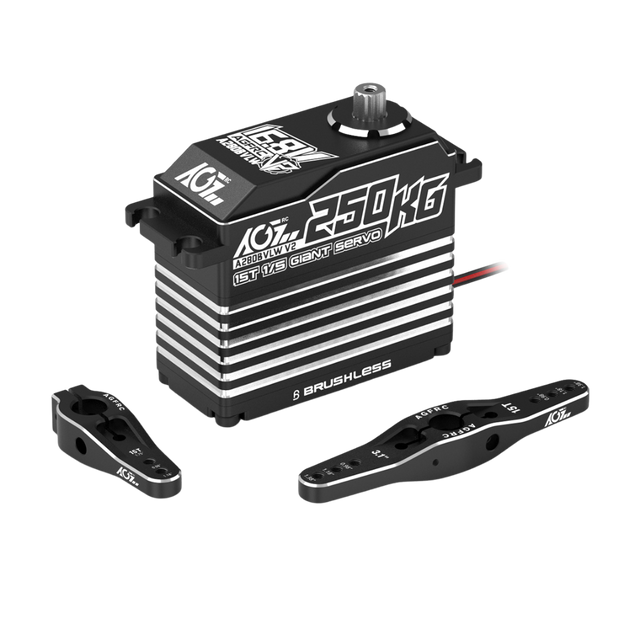

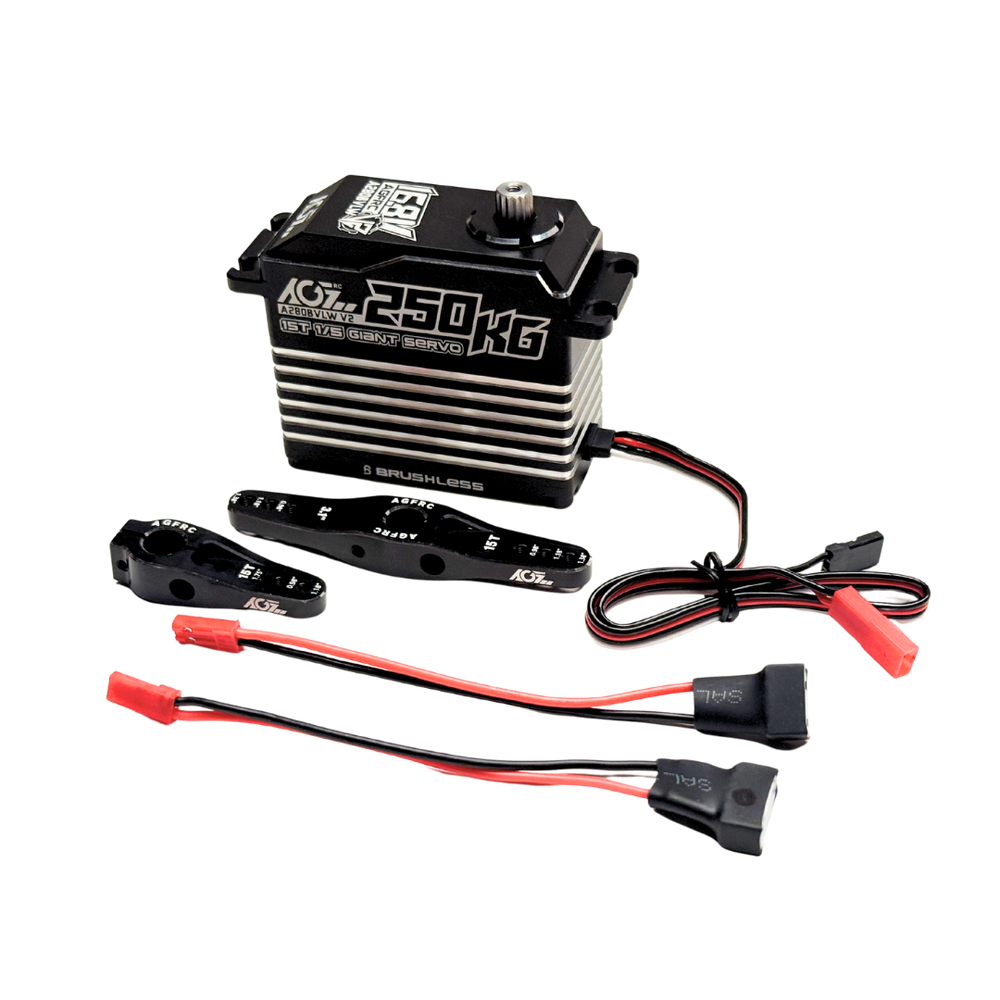

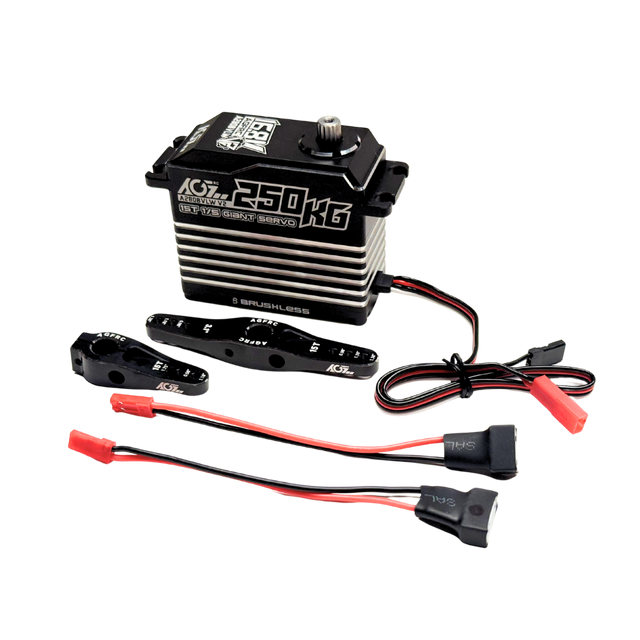

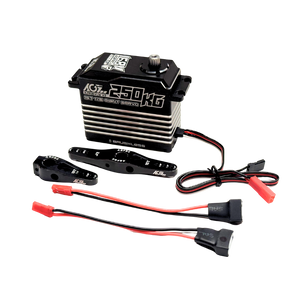

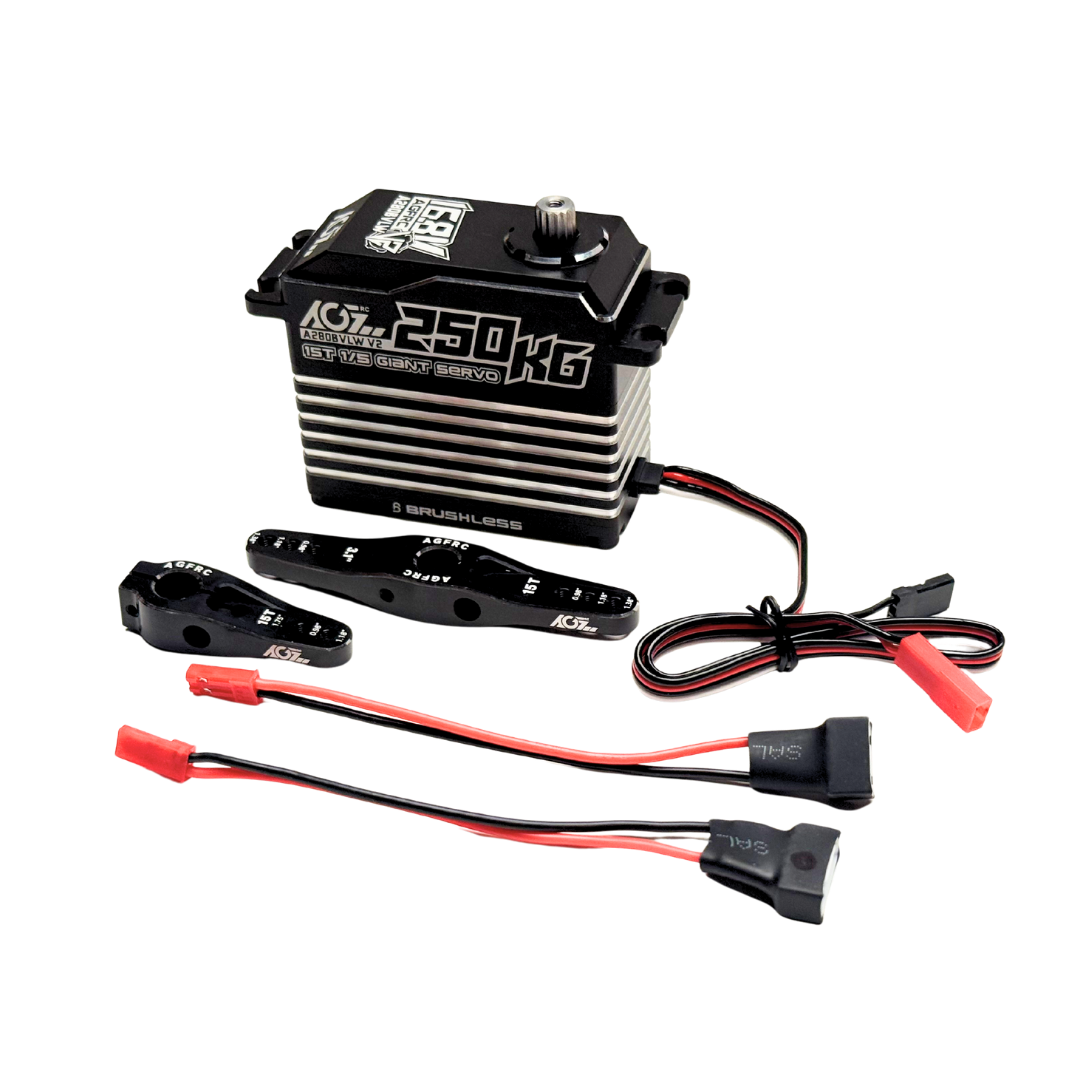

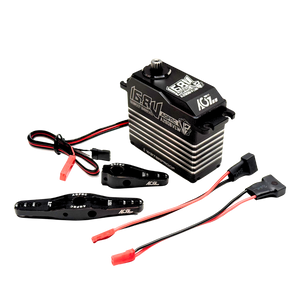

AGFRC Brushless 250KG Billet Servo A280BVLW V2
The brand new A280BVLW V2 servo from AGFRC sets a new standard in torque and power. Utilizing a wide band operating voltage this servo is capable of using up to 4S LiPo power. At full voltage this servo puts out 250kg-cm (2,444 oz-in) of torque. This particular servo is unique that it operates the same as the 100kg A280BHLW with a different gear set and motor. You can use it on 2S, 3S or 4S LiPo power!

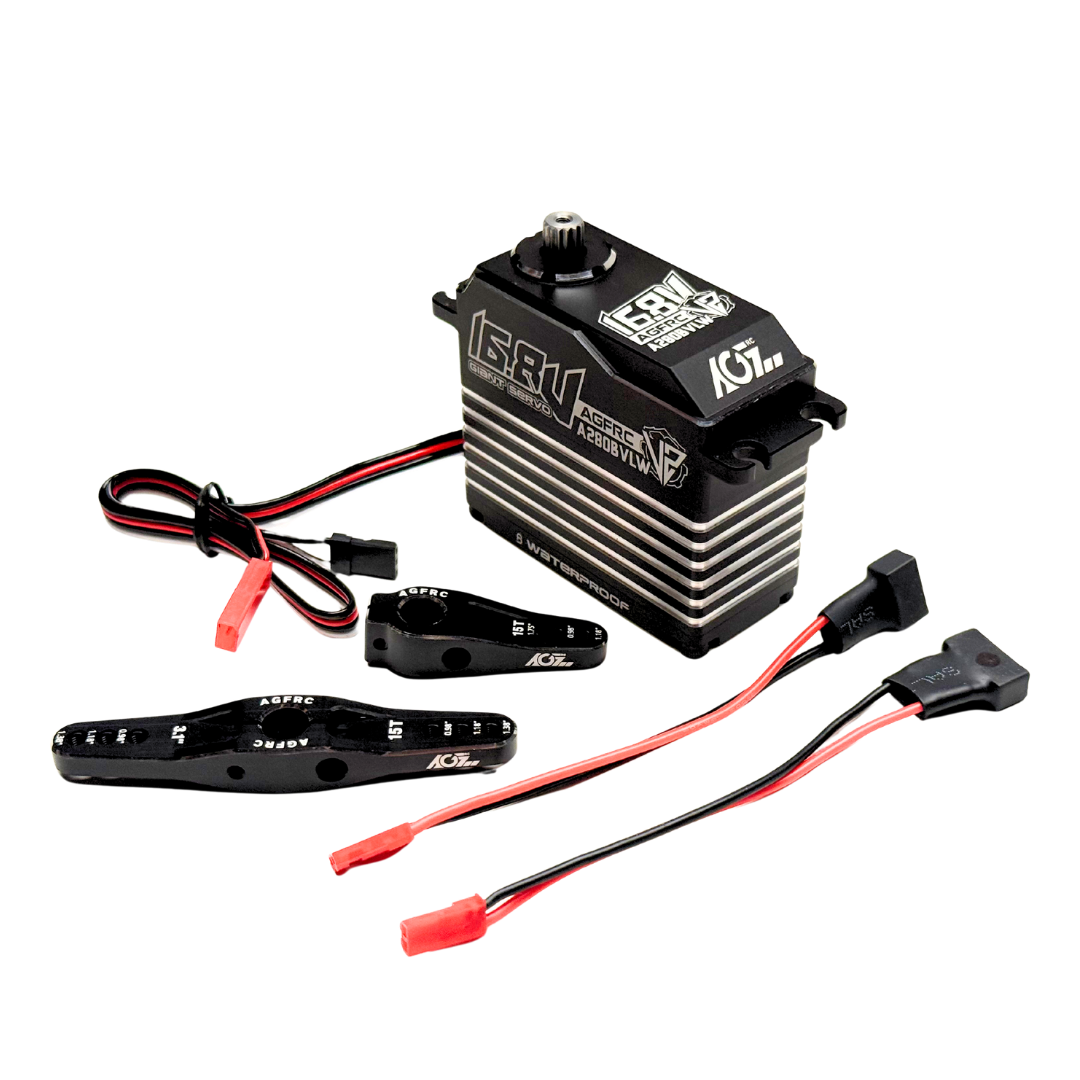

All of the expected features are found including IP67 waterproof and dust proof sealing, a brushless motor and a fully machined aluminum servo case. With a standard large scale 15T Coarse Spline output this servo will fit in all other applications that the A280 series of servo will fit.
AGFRC Servos are industry leading performers which makes them a popular choice for OEM sourcing. Skip the markup and get the best servos at the best price.
- Heat Sink Aluminum Case - Extremely Strong Steel Gears
- Super Reliable Five Ball Bearing
- 2S to 4S Lipo Compatible (ultra wide voltage)

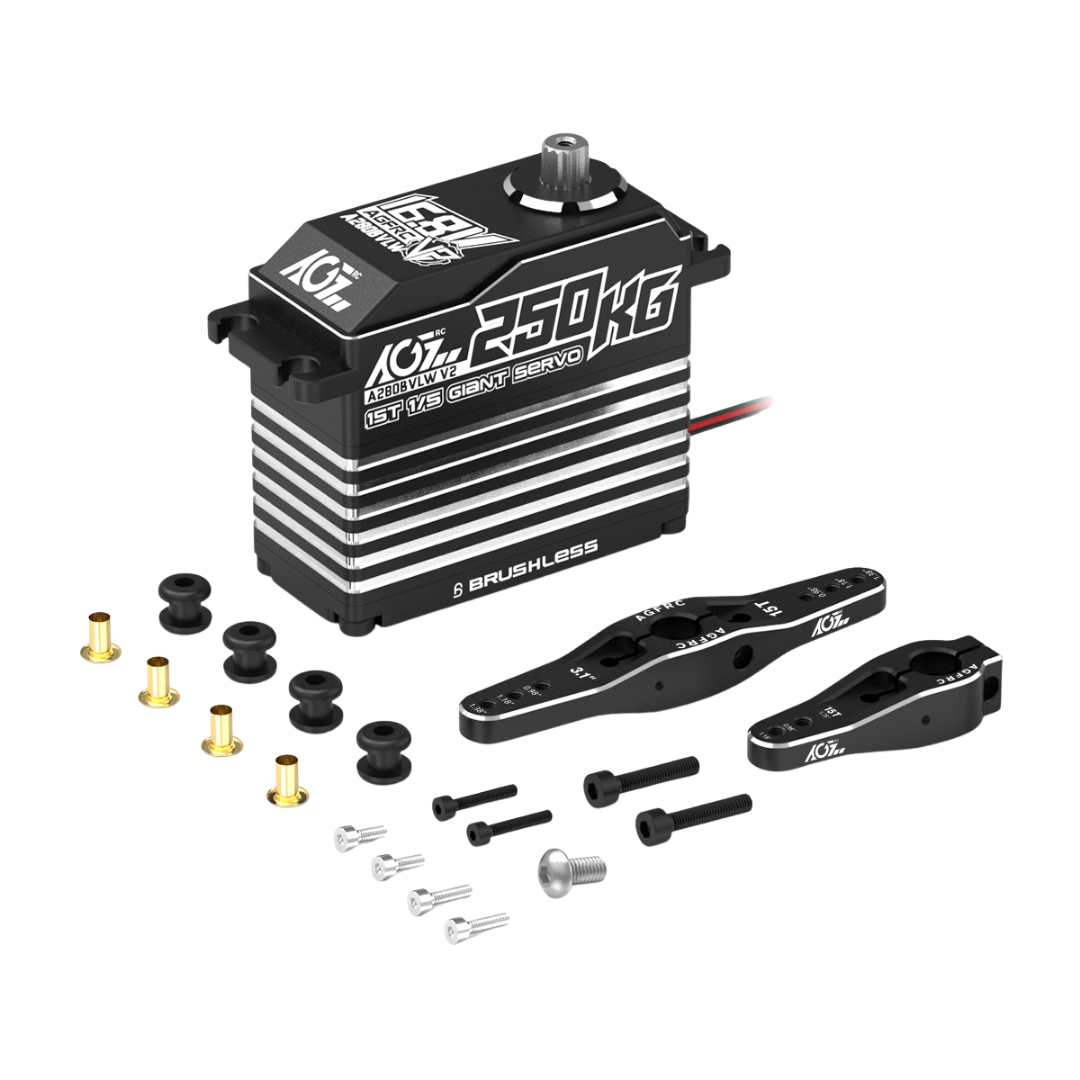

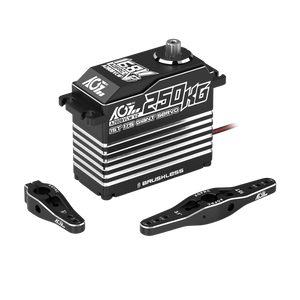

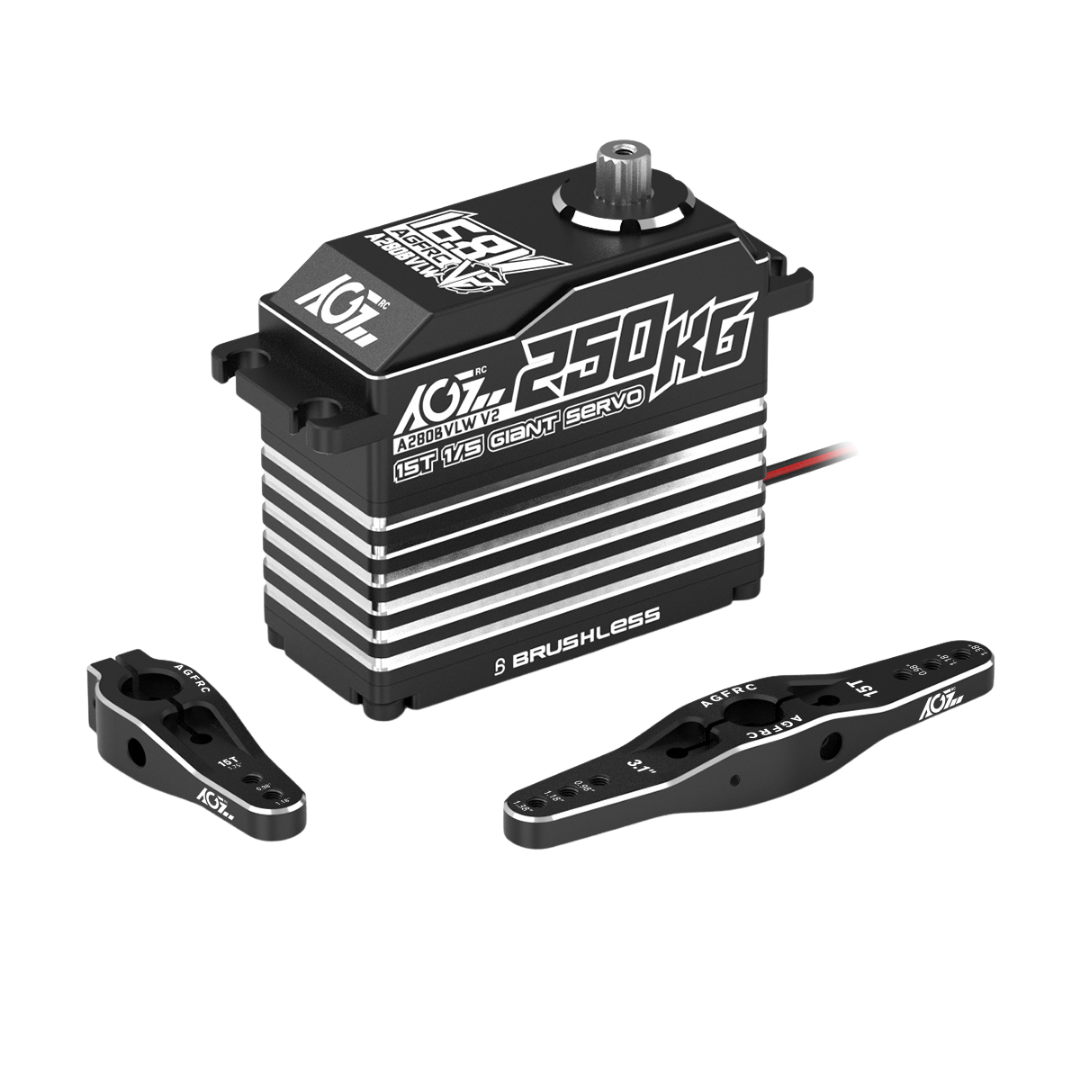

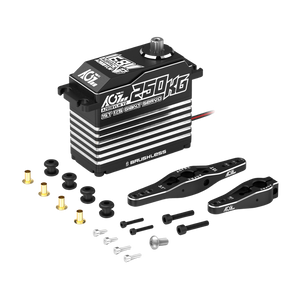

- Associated 15T Aluminum Servo Horns
- Magnetic Sensor Waterproof IP67
- PWM Precision Control
- Voltage 7.4V ~ 16.8V
- Direction CCW
- Gear Material Strength Steel
- Temperature -30°C ~ +70°C
- Pulse Width 500 ~ 2500 µSec Refresh Rate 1520 µS / 333Hz

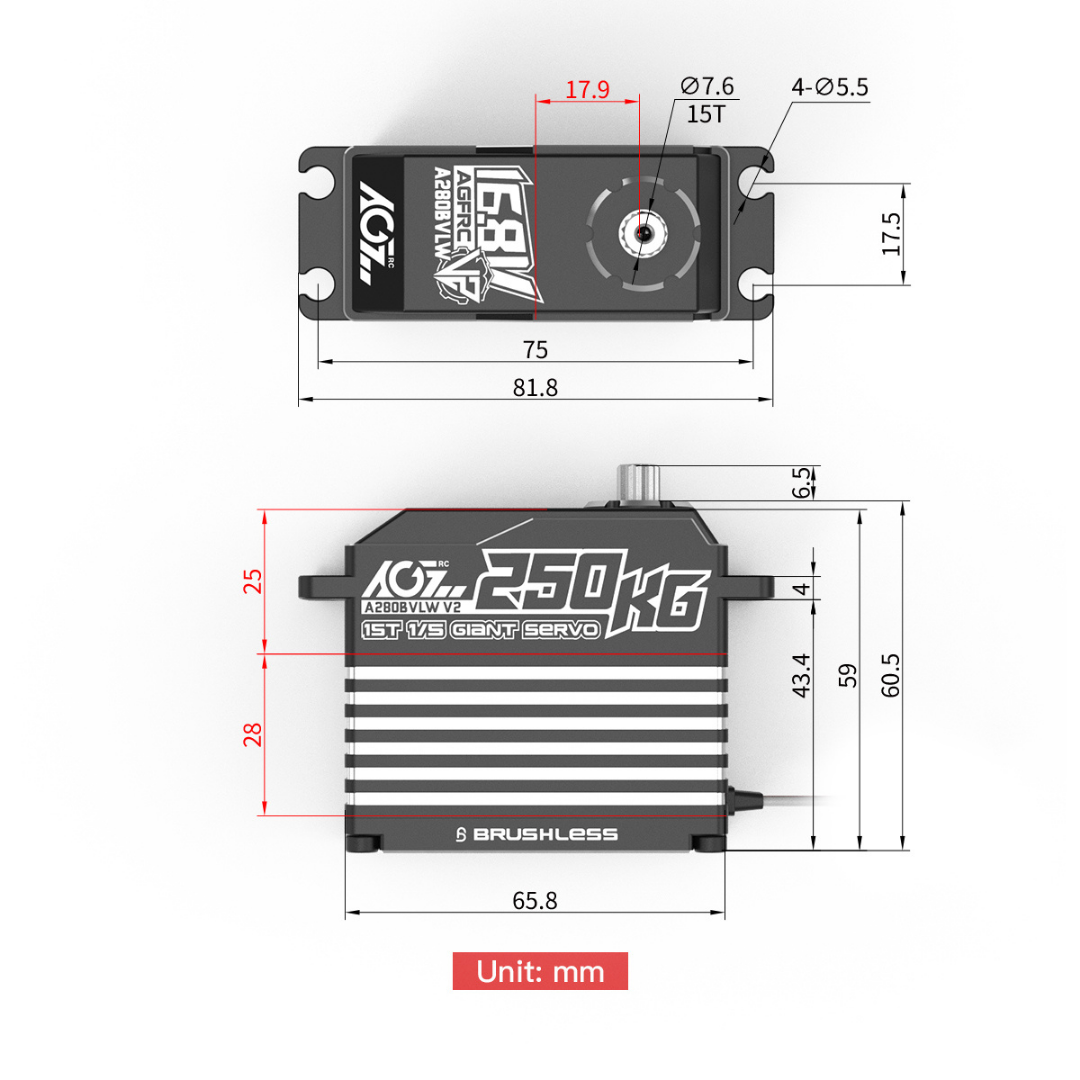

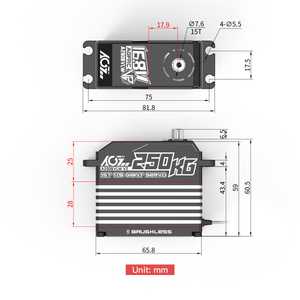

- Dimension 65.8*30.0*59.0 mm
- Motor Type Brushless
- Bearing 8BB
- Dead Band 2 µSec
- Net Weight 300 g
- Gear Spline 15T-ɸ7.8 mm
- Case Material AL6061T6 Travel Angel 180 ± 10°
- Wire TYU 300mm / 22AWG
- Wire Color Black | Red | White
- Operating Speed Stall Torque
- 0.210 sec/60° @10.0V 152 kg·cm (2113 oz·in) @10.0V
- 0.190 sec/60° @11.1V 175 kg·cm (2432 oz·in) @11.1V
- 0.170 sec/60° @12.0V 185 kg·cm (2571 oz·in) @12.0V
- 0.140 sec/60° @14.4V 210 kg·cm (2919 oz·in) @14.4V
- 0.130 sec/60° @16.0V 240 kg·cm (3336 oz·in) @16.0V
- 0.126 sec/60° @16.8V 250 kg·cm (3475 oz·in) @16.8V
